레이저 센서 > 1D 레이저 변위 센서
1D 레이저 변위 센서
최상의 품질,최고의 가격경쟁력
삼각측정법에의한 다양하고 정밀한 측정 : 레벨,위치, 변위, 치수, 표면 프로파일, 변형, 진동, 정렬 및 감지에 대한 비접촉식 측정 및 점검

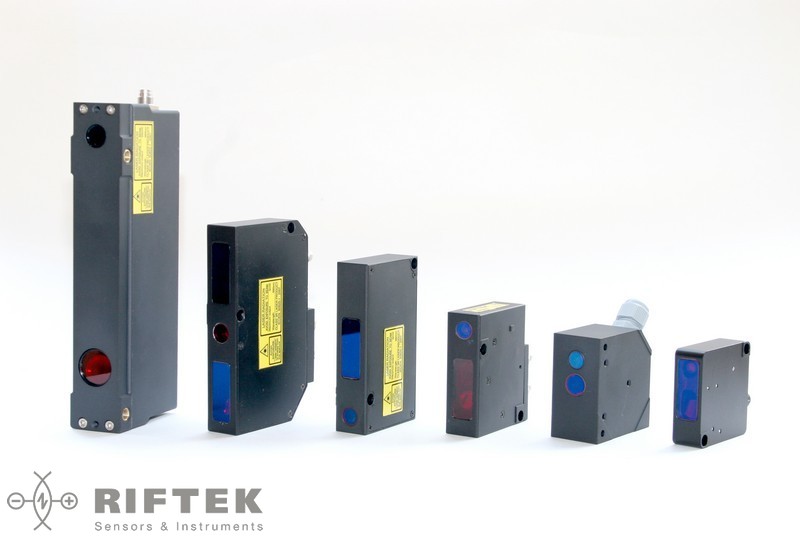

6가지 제품군

RF603 : 2mm ~ 1250 mm 작동 범위의 범용 센서
RF603HS : 고속용 센서
RF600 : 대형베이스 및 장거리 센서
RF605 : 소형 센서
RF602 : 초소형 센서
RF60i : 특수 포장 프로파일 및 텍스처 측정을위한 레이저 센서
Models
Specifications
Operation
Applications
Video
Downloads
RF603 Series – Multi-purpose Laser Sensors
  • Available with Red or Blue laser diodes
  • Varied diode powers for indoor or outdoor applications
  • Binocular sensors for laser scanning
Measuring ranges (mm)
from 2 to 1250
Linearity (% of F.S)
±0.1
Measuring rate (kHz)
9.4
Size (mm)
65x50x20
Weight (g)
100
RF602 Series – Super Compact Laser Sensors
  • Unique combination of dimensions, performance and operating ranges
  • Available with Red and Blue laser diodes
  • Binocular sensors for laser scanning
Measuring ranges (mm)
from 10 to 500
Linearity (% of F.S)
±0.05
Measuring rate (kHz)
9.4
Size (mm)
39.5x30.5x17
Weight (g)
40
RF603HS Series – High Speed Triangulation Sensors
  • Universal, high-speed laser sensor in compact case
  • Available in Red and Blue diodes wavelengths
  • Ideal for capturing fast events and road profiling
Measuring ranges (mm)
from 2 to 1250
Linearity (% of F.S)
±0.1
Measuring rate (kHz)
180
Size (mm)
65x57x20
Weight (g)
110
RF600 Series - Long-range Laser Sensors
  • Up to 2.5m range in a compact sensor
  • Varied offset distances for custom applications
  • Available in Blue diode wavelength for measuring hot objects
Measuring ranges (mm)
from 10 to 2500
Linearity (% of F.S)
±0.1...0.2
Measuring rate (kHz)
9.4
Size (mm)
170x61x31
Weight (g)
500
RF605 Series – Compact Laser Sensors
  • Ultra-compact design for space-saving installations
  • Value model for high-volume applications
Measuring ranges (mm)
from 50 to 500
Linearity (% of F.S)
±0.1
Measuring rate (kHz)
2
Size (mm)
50x50x17.5
Weight (g)
60
RF60i Series – Specialized Laser Sensors for Pavement Profile and Texture Measurement
  • Round laser spot of < 1 mm diameter
  • High resistance to solar radiation
  • Stable operation on wet surfaces
Measuring ranges (mm)
up to 1000
Linearity (% of F.S)
±0.03
Measuring rate (kHz)
up to 70000
Size (mm)
65x50x20 (RF603P)
89x55x28 (RF607)
62x60x20 (RF603Txt)
Weight (g)
100 (RF603P)
150 (RF607)
100 (RF603Txt)
RF603 Series – Multi-purpose Laser Sensors
  • Available with Red or Blue laser diodes
  • Varied diode powers for indoor or outdoor applications
  • Binocular sensors for laser scanning
Measuring ranges (mm)
from 2 to 1250
Linearity (% of F.S)
±0.1
Measuring rate (kHz)
9.4
Size (mm)
65x50x20
Weight (g)
100
RF602 Series – Super Compact Laser Sensors
  • Unique combination of dimensions, performance and operating ranges
  • Available with Red and Blue laser diodes
  • Binocular sensors for laser scanning
Measuring ranges (mm)
from 10 to 500
Linearity (% of F.S)
±0.05
Measuring rate (kHz)
9.4
Size (mm)
39.5x30.5x17
Weight (g)
40
RF603HS Series – High Speed Triangulation Sensors
  • Universal, high-speed laser sensor in compact case
  • Available in Red and Blue diodes wavelengths
  • Ideal for capturing fast events and road profiling
Measuring ranges (mm)
from 2 to 1250
Linearity (% of F.S)
±0.1
Measuring rate (kHz)
180
Size (mm)
65x57x20
Weight (g)
110
RF600 Series - Long-range Laser Sensors
  • Up to 2.5m range in a compact sensor
  • Varied offset distances for custom applications
  • Available in Blue diode wavelength for measuring hot objects
Measuring ranges (mm)
from 10 to 2500
Linearity (% of F.S)
±0.1...0.2
Measuring rate (kHz)
9.4
Size (mm)
170x61x31
Weight (g)
500
RF605 Series – Compact Laser Sensors
  • Ultra-compact design for space-saving installations
  • Value model for high-volume applications
Measuring ranges (mm)
from 50 to 500
Linearity (% of F.S)
±0.1
Measuring rate (kHz)
2
Size (mm)
50x50x17.5
Weight (g)
60
RF60i Series – Specialized Laser Sensors for Pavement Profile and Texture Measurement
  • Round laser spot of < 1 mm diameter
  • High resistance to solar radiation
  • Stable operation on wet surfaces
Measuring ranges (mm)
up to 1000
Linearity (% of F.S)
±0.03
Measuring rate (kHz)
up to 70000
Size (mm)
65x50x20 (RF603P)
89x55x28 (RF607)
62x60x20 (RF603Txt)
Weight (g)
100 (RF603P)
150 (RF607)
100 (RF603Txt)
Laser Triangulation Sensors RF603, Specification
RF603- R-X/4 X/2 X/5 X/10 X/15 X/25 X/30 X/50 X/100 X/250 X/500 X/750 X/1000 X/1250
Base Distance X (mm) 39 15 15 15,
25,
60		 15,
30,
65		 25,
45,
80		 35,
55,
95		 45,
65,
105		 60,
90,
140		 80 125 145 245 260
Measurement
Range (mm)		 4 2 5 10 15 25 30 50 100 250 500 750 1000 1250
Linearity (%) ±0.05 of the range ±0.1
Resolution (%) 0.01 of the range (for the digital output only) 0.02
Temperature Drift 0.02% of the range/°С
Max. Measurement
Frequency (Hz)		 9400
Light source red semiconductor laser, 660 nm wavelength or
UV semiconductor laser 405 nm wavelength (BLUE version)

Light Source
Model RF603
Output Power ≤0.2 ≤3 mW
Laser Safety Class 1 3R (IEC60825-1)
Model RF603L
Output Power ≤0,95 mW
Laser Safety Class 2 (IEC60825-1)
Model RF603Р
Output Power ≤20 mW
Laser Safety Class 3В (IEC60825-1)

Output Interface
Digital RS232 (max. 460,8 kbit/s) or RS485 (max. 921,6 kbit/s) or
RS232 and CAN V2.0B (max 1Mbit/s) or Ethernet and (RS32 or RS485)
Analog 4...20 mA (≤ 500 Ω load) or 0...10 V
Synchronization Input 2,4 – 5 V (CMOS, TTL)
Logic Output programmed functions, NPN: 100 mA max; 40 V max for output
Power Supply (V) 9...36
Power Consumption (W) 1.5..2

Environment Resistance
Enclosure Rating IP67 ( for the sensors with cable connector only)
Vibration 20g/10...1000Hz, 6 hours, for each of XYZ axes
Shock 30 g / 6 ms
Operation Temperature (°С) -10...+60, (-30...+60 for the sensors with in-built heater),
(-30...+120 for the sensors with in-built heater and air cooling housing)
Permissible Ambient Light (lx) 10000 – RF603L, 30000 – RF603, >30000 – RF603P
Relative Humidity 5-95% (no condensation)
Storage Temperature (°С) -40...+70
Housing Material aluminum
Weight (without cable) (g) 100
Note 1.All the values are given for white matt surfaces and may vary for the surfaces with other characteristics.
Note 2.RF603-R-39/4 sensor is designed to use with mirror surfaces and glass.
Laser Triangulation Sensors RF603HS. Specification
RF603HS- X/2 X/5 X/10 X/15 X/25 X/30 X/50 X/100 X/250 X/500 X/750 X/1000 X/1250
Base Distance X (mm) 15 15 15,
25,
60		 15,
30,
65		 25,
45,
80		 35,
55,
95		 45,
65,
105		 60,
90,
140		 80 125 145 245 260
Measurement
Range (mm)		 2 5 10 15 25 30 50 100 250 500 750 1000 1250
Max. Measurement
Frequency (Hz)		 60, 120, 180
Linearity (%) ±0.1 (60 kHz), ±0.2 (120 kHz), ±0.3 (180 kHz) of the range
Resolution (%) 0.01 (60 kHz), 0.02 (120 kHz), 0.04 (180 kHz) of the range
Temperature Drift 0.02% of the range/°С
Light source red semiconductor laser, 660 nm wavelength or
UV semiconductor laser 405 nm wavelength (BLUE version)
Output Power ≤0,95 mW ≤4,8 mW ≤70 mW
Laser Safety Class 2 (IEC60825-1) 3R (IEC60825-1) 3В (IEC60825-1)

Output Interface
Parameterization RS232 or RS485
Data Transfer Ethernet (UDP)
Analog 0...10 V
Synchronization Input 2,4 – 5 B (CMOS, TTL)
Logic Output programmed functions, NPN: 100 mA max; 40 V max for output
Power Supply (V) 9...36
Power Consumption (W) 4.8

Environment Resistance
Enclosure Rating IP67
Vibration 20g/10...1000Hz, 6 hours, for each of XYZ axes
Shock 30 g / 6 ms
Operation Temperature (°С) -10...+60, (-30...+60 for the sensors with in-built heater),
(-30...+120 for the sensors with in-built heater and air cooling housing)
Permissible Ambient Light (lx) 30000
Relative Humidity 5-95% (no condensation)
Storage Temperature (°С) -40...+70
Housing Material aluminum
Weight (without cable) (g) 110
Note 1.All the values are given for white matt surfaces and may vary for the surfaces with other characteristics.
Laser Triangulation Sensors RF600. Specification
RF600- X/10 X/30 X/40 X/100 X/250 X/500 X/600 X/1000 X/1000 X/1500 X/2000 X/2500
Base Distance X (mm) 230 300 330 500 230 300,
1000		 230 1300 380 390 410 420
Measurement
Range (mm)		 10 30 40 100 250 500 600 1000 1000 1500 2000 2500
Linearity (%) ±0.1 of the range ±0.2
Resolution (%) 0.01 of the range (for the digital output only) 0.03
Temperature Drift 0,02% of the range/°С
Max. Measurement
Frequency (Hz)		 9400
Light source red semiconductor laser, 660 nm wavelength or
UV semiconductor laser 405 nm wavelength (BLUE version)
Output Power ≤4,8 mW ≤20 mW
Laser Safety Class 3R (IEC60825-1) 3В (IEC60825-1)

Output Interface
Digital RS232 (max. 460,8 kbit/s) or RS485 (max. 921,6 kbit/s) or
RS232 and CAN V2.0B (max 1Mbit/s) or Ethernet and (RS32 or RS485)
Analog 4...20 mA (≤ 500 Ω load) or 0...10 V
Synchronization Input 2,4 – 5 V (CMOS, TTL)
Logic Output programmed functions, NPN: 100 mA max; 40 V max for output
Power Supply (V) 9...36
Power Consumption (W) 1,5..2

Environment Resistance
Enclosure Rating IP67 ( for the sensors with cable connector only)
Vibration 20g/10...1000Hz, 6 hours, for each of XYZ axes
Shock 30 g / 6 ms
Operation Temperature (°С) 10...+60, (-30...+60 for the sensors with in-built heater)
Permissible Ambient Light (lx) 30000
Relative Humidity 5-95% (no condensation)
Storage Temperature (°С) -40...+70
Housing Material Aluminum
Weight (without cable) (g) 500
Note 1.All the values are given for white matt surfaces and may vary for the surfaces with other characteristics.
Laser Triangulation Sensors RF605. Specification
RF605- 25/50 45/100 65/250 105/500
Base Distance X (mm) 25 45 65 105
Measurement
Range (mm)		 50 100 250 500
Linearity (%) ±0.1 of the range
Resolution (%) 0.02 of the range
Temperature Drift 0,02% of the range/°С
Max. Measurement Frequency (Hz) 2000
Light source red semiconductor laser, 660 nm wavelength
Output Power ≤0,95 mW
Laser Safety Class 2 (IEC60825-1)

Output Interface
Digital RS232 (max. 460,8 kbit/s) or RS485 (max. 460,8 kbit/s)
Analog 4...20 mA (≤ 500 Ω load) or 0...10 V
Synchronization Input 2,4 – 5 V (CMOS, TTL)
Logic Output programmed functions, NPN: 100 mA max; 40 V max for output
Power Supply (V) 24 (9...36)
Power Consumption (W) 1,5..2

Environment Resistance
Enclosure Rating IP67 ( for sensors with cable connector only)
Vibration 20g/10...1000Hz, 6 hours, for each of XYZ axes
Shock 30 g / 6 ms
Operation Temperature (°С) -10...+60
Permissible Ambient Light (lx) 7000
Relative Humidity 35-85%
Storage Temperature (°С) -40...+70
Housing Material Aluminum
Weight (without cable) (g) 60
Note 1.All the values are given for white matt surfaces and may vary for the surfaces with other characteristics
Laser Triangulation Sensors RF602. Specification
RF602- 20/10 20/25 30/50 50/100 65/250 105/500
Base Distance X (mm) 20 20 30 50 65 105
Measurement
Range (mm)		 10 25 50 100 250 500
Linearity (%) ±0.05 of the range ±0.1
Resolution (%) 0.01 of the range 0.02
Temperature Drift 0.02% of the range/°С
Max. Measurement Frequency (Hz) 9400
Light source red semiconductor laser, 660 nm wavelength or
UV semiconductor laser 405 nm wavelength (BLUE version)
Output Power ≤0,95 mW
Laser Safety Class 2 (IEC60825-1)

Output Interface
Digital RS232 (max. 460,8 kbit/s) or RS485 (max. 460,8 kbit/s)
Analog 4...20 mA (≤ 500 Ω load) or 0...10 V
Synchronization Input 2,4 – 24 V (CMOS, TTL)
Logic Output programmed functions, NPN: 100 mA max; 40 V max for output
Power Supply (V) 9...36
Power Consumption (W) 1,5..2

Environment Resistance
Enclosure Rating IP67 ( for sensors with cable connector only)
Vibration 20g/10...1000Hz, 6 hours, for each of XYZ axes
Shock 30 g / 6 ms
Operation Temperature (°С) -10...+60
Permissible Ambient Light (lx) 10 000
Relative Humidity 5-95% (no condensation)
Storage Temperature (°С) -40...+70
Housing Material Aluminum
Weight (without cable) (g) 40
Note 1.All the values are given for white matt surfaces and may vary for the surfaces with other characteristics
Laser Triangulation Sensors RF60i. Specification
Model RF603P RF603P RF607 RF607 RF607 RF603Txt
Base Distance X (mm) 125 245 190 210 230 30
Measurement
Range (mm)		 500 1000 500 200 250 30
Linearity (%) ±0.05 ±0.02 ±0.05
Resolution (%) 0,01 (for the digital output only)
Temperature Drift 0,02% of the range / °С
Max. Measurement Frequency (Hz) 9400 70000 9400
Light source red semiconductor laser, 660 nm wavelength
Output Power <20 <50 <20 <1
Laser Safety Class 3B 2
Laser Spot Shape elliptic round
Laser spot size
"beginning-middle-end
of the range" (mm)		 1,7х3-
0,16х0,2- 3х5		 1,6х2,5-
0,5х0,8-
1,6х3,5		 0,9-1-0,9 0,8-0,7-0,6 0,8-0,7-0,5 0,06-0,025-0,06

Output Interface
Digital №1 RS232 or RS485 (max. 921600 baud)
Digital №2 Ethernet (max. 100 Mbit)
Analog 4...20 mA
(load ≤500 Ohm)
or 0...10 V		 0...10 В 4...20 mA
(load ≤500 Ohm)
or 0...10 V
Synchronization Input 2,4 – 5 B (CMOS, TTL)
Logic Output programmed functions, NPN (open collector): 100 mA max; 40 V max
Power Supply (V) 9...36
Power Consumption (W) 1,5..2
Weight (without cable) (g) 100 150 100
Housing Material Aluminum

Environment Resistance
Enclosure Rating IP67 (only for sensors with a connector on the housing)
Vibration 20 g / 10...1000 Hz, 6 hours for each of XYZ axes
Shock 30 g / 6 ms
Operation Temperature (°С) -10...+60 (-30...+60 for the sensors with in-built heater; -30...+120 for the sensors with in-built heater and air cooling housing)
Permissible Ambient Light (lx) >30000
Relative Humidity 5-95 (no condensation)
Storage Temperature (°С) -20...+70
센서의 작동은 광학 삼각 측량의 원리를 기반으로 작동. 레이저 (1)은 렌즈 (2)에 의해 대상물 (6)에 집속. 대상물에 의해 반사 된 레이저는 렌즈 (3)에 의해 선형 CCD 어레이 (4) 상으로 수집. 신호 처리기 (5)는 어레이 (4)상의 레이저 광 스폿(spot)을 계산하여 처리함
High precision noncontact measurements
  • Thickness
  • Object Dimensions
  • Objects Sorting
  • Runout
  • Profiling
  • Object and Target Displacements
3D Laser scanning using RF603 sensor on an XY stage (1m 10s)
3D Laser scanning using RF603 sensor on an XY stage (1m 10s)
RF600 Series Manual (6MB) RF602 Series Manual (5MB) RF603 Series Manual(7MB) RF603 Series Manual (under 2018) (2MB) RF603HS Series Manual (5MB) RF605 Series Manual (2MB) RF60i Series Manual (7MB) RF609(RF609Rt) Series Manual (5MB) RF60x Setup software 2019 (16MB) RF60x Setup software (under 2019) (20MB) RF60x EDS (1kB) RF Device SDK (4MB) RF600 Series 2D CAD data (76kB) RF600 Series 3D CAD data (222kB) RF602 Series 2D CAD data (154kB) RF602 Series 3D CAD data (338kB) RF603 Series 2D CAD data (329kB) RF603 Series 3D CAD data (1MB) RF603HS Series 2D CAD data (329kB) RF603HS Series 3D CAD data (1MB) RF605 Series 2D CAD data (43kB) RF605 Series 3D CAD data (187kB) RF609 Series 2D CAD data (785kB) RF609 Series 3D CAD data (785kB)
파트너 사이트
BS홀딩스
http://www.bestsens.co.kr
RIFTEK
http://www.riftek.com
경기도 안산시 단원구 원포공원 1로 59, B동 201호
E-mailbsh5011@hanmail.net
TEL031-411-5011
Copyright ⓒ 2018 by BS홀딩스. all rights reserved.
