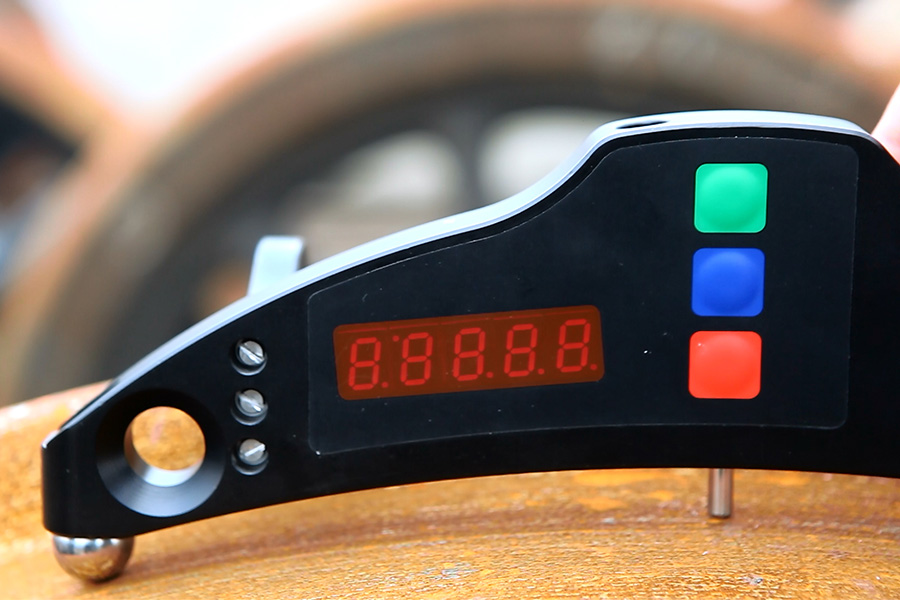

Wheel Diameter Measuring Gauge IDK Series Specification
| Name of Parameter | Value |
|---|---|
| Measurement range, mm | 400…1400 or on request |
| Measurement error, mm | ±0.2 |
| Indication discreteness | 0.1mm, 0.01mm * or 0.01 inch ** |
| Position of measurement, S, mm | On request |
|
Distance between axes of ball bearings (base), mm and diameters measurement range, mm |
122±0.5 (400…750 mm) or 200±0.5 (400…950 mm) or 250±0.5 (600…1400 mm) or 300±0.5 (720…1400 mm) |
| Display | build-in, LED |
| Operating temperature, °С | -5…+55 |
| Weigh, kg | <0,5 |
Wheel Diameter Measuring Gauge IDK-BT Series Specification
| Name of Parameter | Value |
|---|---|
| Measurement range, mm | 400…1400 or on request |
| Measurement error, mm | ±0.2 |
| Indication discreteness | 0.1mm, 0.01mm * or 0.01 inch ** |
| Position of measurement, S, mm | On request |
|
Distance between axes of ball bearings (base), mm and diameters measurement range, mm |
122±0.5 (400…750 mm) or 200±0.5 (400…950 mm) or 250±0.5 (600…1400 mm) or 300±0.5 (720…1400 mm) |
| Display | build-in, LED |
| Operating temperature, °С | -5…+55 |
| Power supply – built-in rechargeable battery | two AAA 1,2V |
| The number of measurements that can be taken before battery recharge is not less than |
1000 |
| Weigh, kg | <0,5 |
Wheel Diameter Measuring Gauge IDK-BT Series Complete Set
| Name | Quantity | Weight (kg) |
|---|---|---|
| Wheel diameter measuring gauge IDK series | 1 piece | 0.5 |
| Charger | 1 piece | 0.2 |
| Manual | 1 piece | |
| Case | 1 piece | |
| Calibration tools (option) | on request | |
| Flat block RF510.11.000 | - | |
| Reference wheel block for calibrating RF510.11.XXXX | - | |
| Shock-resistant case | on request |
Wheel Diameter Measuring Gauge IDK-BT Series Complete Set
| Name | Quantity | Weight (kg) |
|---|---|---|
| Wheel diameter measuring gauge IDK series | 1 piece | 0.5 |
| Charger | 1 piece | 0.2 |
| RF303 – PDA (option) | 1 piece | 0.4 |
| Charging device 5V 3.0A for PDA (option) | ||
| Manual | 1 piece | |
| Case | 1 piece | |
| Database management system (CD) | ||
| Calibration tools (option) | on request | |
| Flat block RF510.11.000 | - | |
| Reference wheel block for calibrating RF510.11.850 | - | |
| Shock-resistant case | on request |
