2D 라인 레이저 스캐너

최상의 품질,최고의 가격경쟁력
레이저의 선(line)에의한 정밀측정 : 표면 프로파일, 치수, 기술 대상의 정렬 및 감지에 대한 비접촉식 측정 및 점검

2가지 제품군

RF625 : 5mm ~ 1400mm 작동 범위의 범용 스캐너
RF627 : 초소형, 고정밀 고속 스캐너

Models

Specifications

Operation

Applications

Video

Downloads

RF627 Series

Compact, high-precision, high-speed scanners
Available in Red, Blue and IR diode wavelengths

Measuring ranges (mm)

from 10 to 250

Linearity (% of F.S)

±0.05

Measuring rate (profiles/s)

485, 938, 6800

RF625 Series

Universal, high-speed laser scanners
Available in Red, Blue and IR diode wavelengths

Measuring ranges (mm)

from 5 to 1400

Linearity (% of F.S)

±0.1

Measuring rate (profiles/s)

250, 500, 1875

RIFTEK Lamia Software for seam tracking and measurement

Recognizing, tracking and measuring geometric parameters of objects (for example, weld seams) in accordance with the selected math algorithm (template)
Connecting to the client controllers to transmit results
Data visualization
Setting and control of 2D laser scanner parameters

RF627 Series

Compact, high-precision, high-speed scanners
Available in Red, Blue and IR diode wavelengths

Measuring ranges (mm)

from 10 to 250

Linearity (% of F.S)

±0.05

Measuring rate (profiles/s)

485, 938, 6800

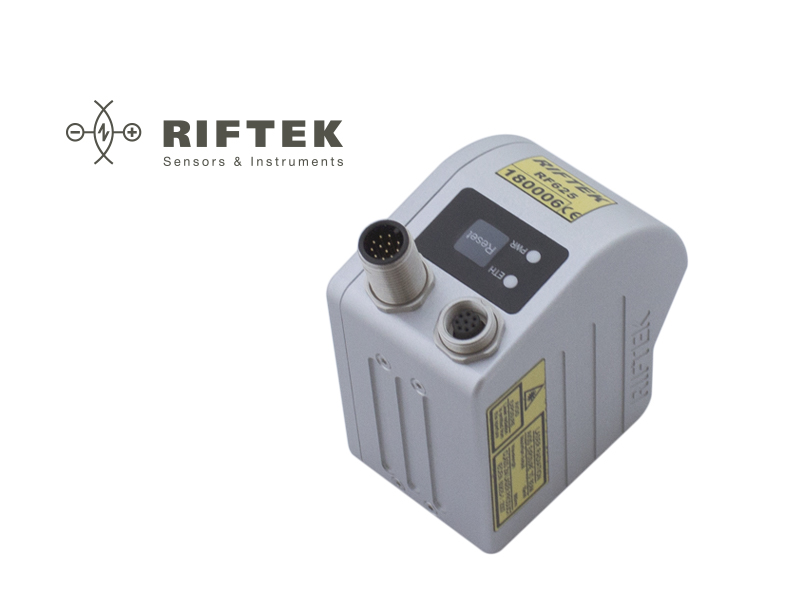

RF625 Series

Universal, high-speed laser scanners
Available in Red, Blue and IR diode wavelengths

Measuring ranges (mm)

from 5 to 1400

Linearity (% of F.S)

±0.1

Measuring rate (profiles/s)

250, 500, 1875

RIFTEK Lamia Software for seam tracking and measurement

Recognizing, tracking and measuring geometric parameters of objects (for example, weld seams) in accordance with the selected math algorithm (template)
Connecting to the client controllers to transmit results
Data visualization
Setting and control of 2D laser scanner parameters

2D laser scanner RF627. Specification

Range	MR (mm)	SMR (mm)	EMR (mm)	Xsmr (mm)	Xemr (mm)	Laser	Size (mm)	weight (g)	Housing Version
25/10 - 8/11	10	25	35	8	11	658 nm or 405 nm or 450 nm or 808 nm Class 2M	72x71x44	550	Figure 1
65/25-21/25	25	65	90	21	25		93x63x44	600	Figure 2
75/50-30/42	50	75	125	30	41
70/100-48/82	100	70	170	48	82
65/150-58/122	150	65	215	58	122
90/150-54/105	150	90	240	54	105
75/200-62/150	200	75	270	62	150
90/250-65/180	250	90	340	65	180

Sampling rate and accuracy
Nominal sampling rate (full working range)	484 profiles/s (standard mode), 938 profiles/s (DS mode)
Maximal sampling rate (ROI mode)	5096 profiles/s, 6800 profiles/s (DS mode)
Linearity (measurement error), Z axis	±0.05% of the range (standard mode), ±0.1% of the range (DS mode)
Linearity (measurement error), X axis	±0.2% of the range
Resolution, Z axis	0.01% of the range (standard mode), 0.02% of the range (DS mode)
Resolution, X axis	648 or 1296 points (programmable value)
Interface
Basic	Ethernet / 1000 Mbps
Synchronization inputs	RS422, 3 channels
Laser on/off hardware input	1
Outputs	RS422, 1 channel
Power supply	9...30 V
Power consumption, not more	6 W (without a built-in heater)
Environment resistance
Enclosure rating	IP67
Vibration	20 g / 10...1000 Hz, 6 hours for each of XYZ axes
Shock	30 g/6 ms
Operating ambient temperature, °С	-20...+40, or -40...+40 for scanners with built-in heater, or -40...+120 for scanners with built-in heater and cooling system
Relative humidity	5-95% (no condensation)
Storage temperature, °С	-20...+70
Housing/windows material	aluminum/glass

2D laser scanner RF625. Specification

Range	MR (mm)	SMR (mm)	EMR (mm)	Xsmr (mm)	Xemr (mm)	Laser	Size (mm)	weight (g)	Housing Version
40/5-6/7	5	40	45	6	7	Class 2M	30х88х120	400	Compact
35/10-10/12	10	35	45	10	12
55/10-10/11	10	55	65	10	11
30/25-18/26	25	30	55	18	26
65/25-17/23	25	65	90	17	23
55/50-27/45	50	55	105	27	45
90/50-23/35	50	90	140	23	35
65/65-29/54	65	65	130	29	54
75/95-34/67	95	75	170	34	67
140/110-43/68	110	140	250	43	68	Class 2M or 3B	50x98x144	500	Standard
125/200-60/130	200	125	325	60	130
100/250-75/180	250	100	350	75	180
140/250-70/155	250	140	390	70	155
17/6-7/8	6	17	23	7	8	Class 2M	122x52x104	590	Special
90/10-9/10	10	90	100	9	10	Class 2M	49х84х162	1000
240/20-14/16	20	240	260	14	16	Class 2M	50х98х144	1000
175/250-115/230	250	175	425	115	230	4 W, 808 nm, Class 3B	66х171х235	2000
165/300-130/240	300	165	465	130	240	Class 2M or 3В	48х106х219	1100
240/290-200/320	290	240	530	200	320	Class 2M or 3В	50х125х360	3000
450/650-190/420	650	450	1100	190	420	Class 3B	50х110х300	3000
425/990-330/960	990	425	1415	330	960	Class 3B	48х198х480	2500
540/1400-340/980	1400	540	1940	340	980	Class 3B	48x210х415	3000
1050/165-85/100	165	1050	1215	85	100	Class 3B	598x54x216	3600

Sampling rate and accuracy
Nominal sampling rate	248 profiles/s (standard mode), 491 profiles/s (mode of increased frequency)
Maximal sampling rate	1875 profiles/s
Linearity (measurement error), Z axis	±0.1% of the range (±0.05% for scanners with the range 17/6-7/8)
Linearity (measurement error), X axis	±0.2% of the range
Interface
Digital	Ethernet IPv4
Synchronization inputs/outputs	RS422
Synchronization inputs	up to 3 channels
Synchronization outputs	up to 2 channels
Power supply	15...30 V
Environment resistance
Enclosure rating	IP67
Vibration	20g/10...1000Hz, 6 hours, for each of XYZ axes
Shock	30 g/6 ms
Ambient temperature (°С)	0…+40, (-20…+40 for the sensors with in-built heater), (-30…+120 for the sensors with in-built heater and water/air cooling housing). Note: At ambient temperature below -20, the scanner starts to warm up to -20 after switching on, and then starts to work.
Relative humidity	5-95% (no condensation)
Storage temperature (°С)	-20...+70
Housing/windows material	aluminum/glass

스캐너의 작동은 광학 삼각 측량의 원리를 기반으로 작동.
라인 레이저는 렌즈에 의해 일렬로 형성되어 대상물에 투사. 대상물에서 산란 된 레이저는 렌즈로 수집되어 2 차원 CMOS 이미지 센서로 전송. 이렇게 형성된 대상 윤곽의 이미지는 신호 처리기에 의해 분석되며, 신호 처리기는 대상의 레이저 라인을 따라 세트의 각 포인트 (Z- 좌표)에 대한 대상까지의 거리 (Z- 좌표)를 계산. 스캐너는 Z 축의 경우 기본 거리 (범위 시작), SMR, Z 좌표의 경우 측정 범위 (MR), Z (Xsmr)의 시작 부분에서 X 좌표의 측정 범위 및 X 축의 측정 범위를 계산하여 산출
